Step 2: Wrap the cable towards…
Step 2: Wrap the cable towards the rear of the gear and overlap them.
 Views: 4974
Posted by Crewella
 Feb 21, 2012
in Crewella's Scully Pics
|
Rethreading the cable gear ste…
Rethreading the cable gear step 1: Thread the cable through the gear, this part is very fiddly. Make sure you have half the cable coming out each side.
Views: 5040
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|

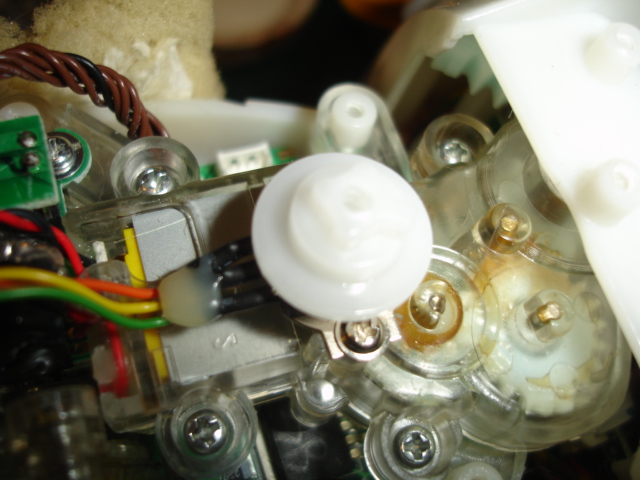

A closer look at the main gear…
A closer look at the main gear:
Views: 5048
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
This bottom gear is where the…
This bottom gear is where the cable attaches to, please note very carefully the position of the gear as you remove it, or use here for a reference.
Views: 5019
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
The other side of the gear hou…
The other side of the gear housing.
Views: 4983
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|

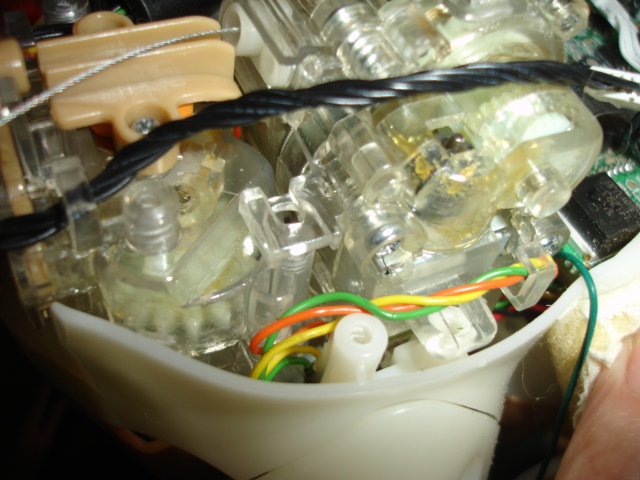

Underneath the gear housing, i…
Underneath the gear housing, inside the body cavity, showing where the bottom cable feeds through, note it also has a spring that it must run through.
Views: 5082
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
The gear housing lifted out of…
The gear housing lifted out of the body cavity, DO NOT PULL IT RIGHT OUT! Leave the wires attached. You will need to undo the three screws during the operation.
Views: 5203
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
A front view of the same secti…
A front view of the same section. Please note in this section the small 'C' shaped piece running along the top of the cable gear, this helps the cables stay threaded correctly. Do not lose this piece.
Views: 4683
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
A side view of the gear housin…
A side view of the gear housing, note that in this picture the spring has been removed to reveal the cable.
Views: 4667
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
The gear housing showing where…
The gear housing showing where the wire exits the housing and runs through the spring before running through the neck 'vertebra'.
Views: 4493
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
Underneath the backplate, the…
Underneath the backplate, the green circuitry in the upper section must be lifted up to access the gear housing. There is a screw located just under that piece. Do not pull it out from the body, just lift it up.
Views: 4612
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
The back plate showing the loc…
The back plate showing the locations of the eight screws:
Views: 4520
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
The small white piece sitting…
The small white piece sitting underneath the white plate.
Views: 4538
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
Underneath the black plate: t…
Underneath the black plate: the small white piece under the white back plate must be replaced before reattaching the white plate, or you will need to re-do it. The black back plate screws into that piece.
Views: 4704
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
The black spinal joint that ne…
The black spinal joint that needs removing to access the white back plate.
Views: 4481
Posted by Crewella
Feb 21, 2012
in Crewella's Scully Pics
|
