Album
Crewella's Scully Pics
User Album - Owner: Crewella - 100 items
Items view: Normal view Filestack view
Sort by: ID Date Title Views Rating | Sort Order: Ascending Descending
Pages: [1] 2 3

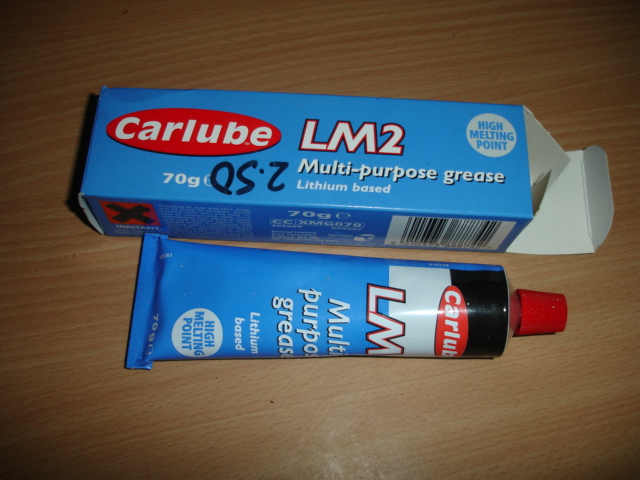

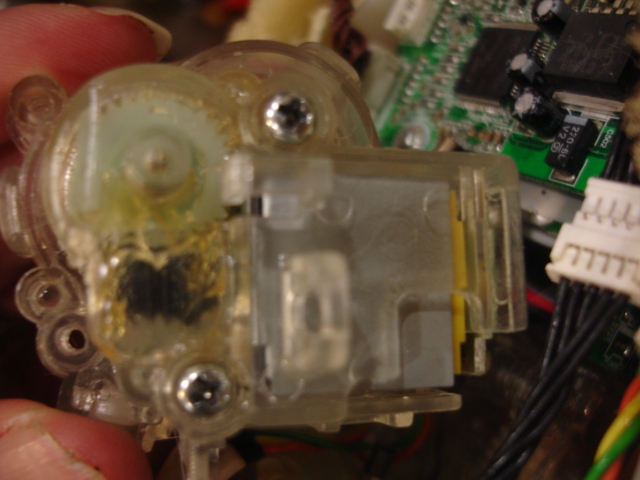

Lube for gears etc.
Lube for gears etc.

 Views: 4662
 Comments: 4
Posted by Crewella

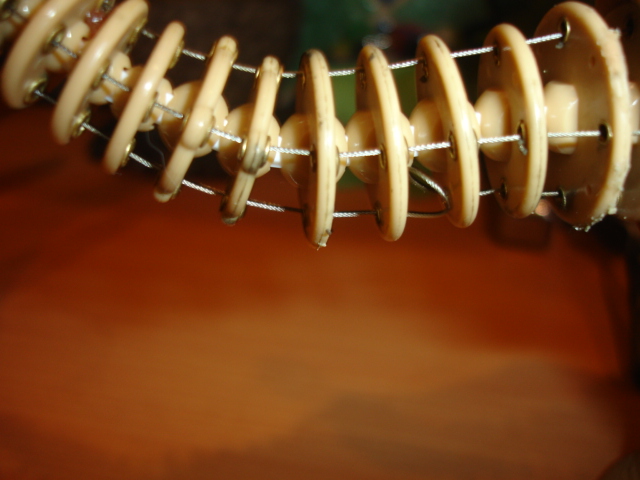

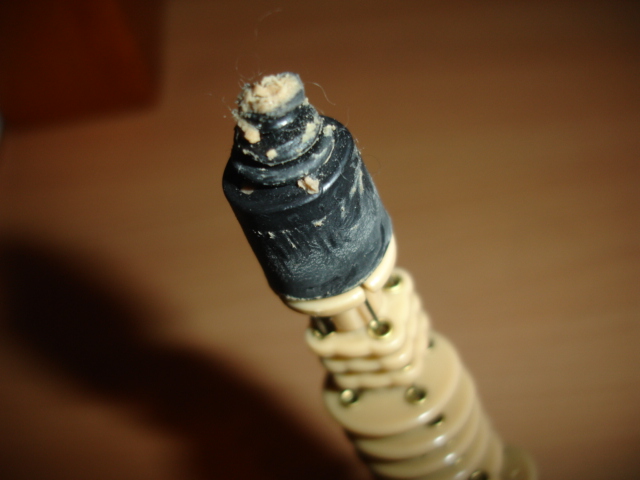

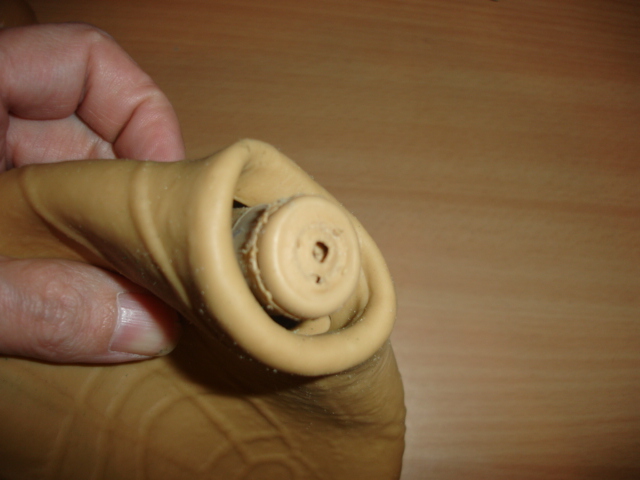

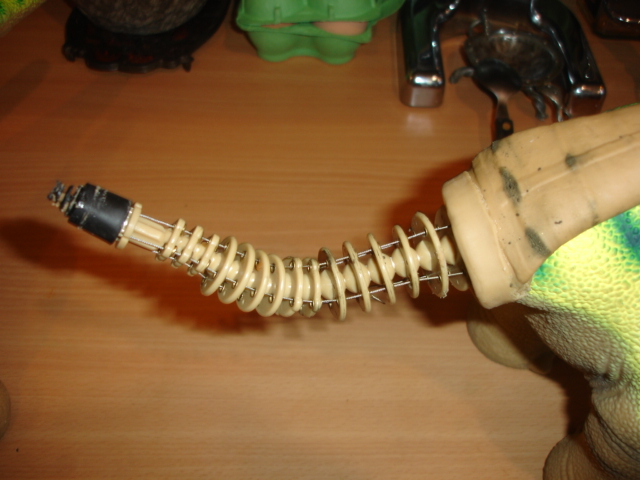

Apr 07, 2012 		Beta's tail
Beta's tail

 Views: 3852
Posted by Crewella
Mar 01, 2012 		Beta's tail
Beta's tail

 Views: 3861
Posted by Crewella
Mar 01, 2012 		Beta's tail
Beta's tail

 Views: 3877
Posted by Crewella
Mar 01, 2012 		Beta's tail
Beta's tail

 Views: 3878
Posted by Crewella
Mar 01, 2012
Beta's tail
Beta's tail

 Views: 3878
Posted by Crewella
Mar 01, 2012 		Beta's tail
Beta's tail

 Views: 3847
Posted by Crewella
Feb 29, 2012 		Beta's tail
Beta's tail

 Views: 3879
Posted by Crewella

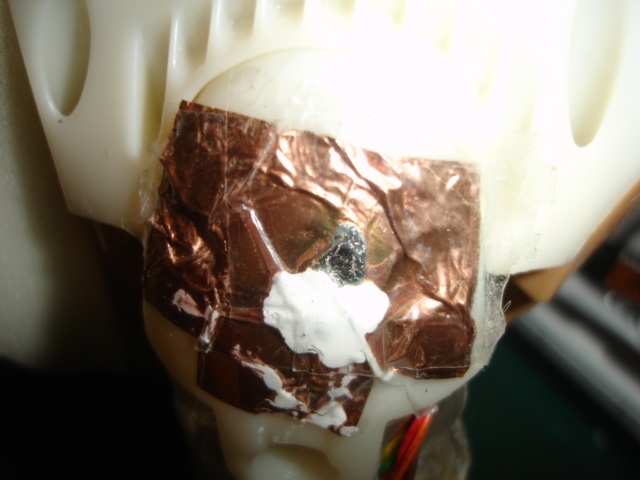

Feb 29, 2012 		Note: RB sensors are now cove…
Note: RB sensors are now covered in a layer of plastic

 Views: 3689
Posted by Crewella
Mar 03, 2012 		Once it's all threaded though…
Once it's all threaded though and in position ...... you can start putting it all back again!

 Views: 4652
Posted by Crewella

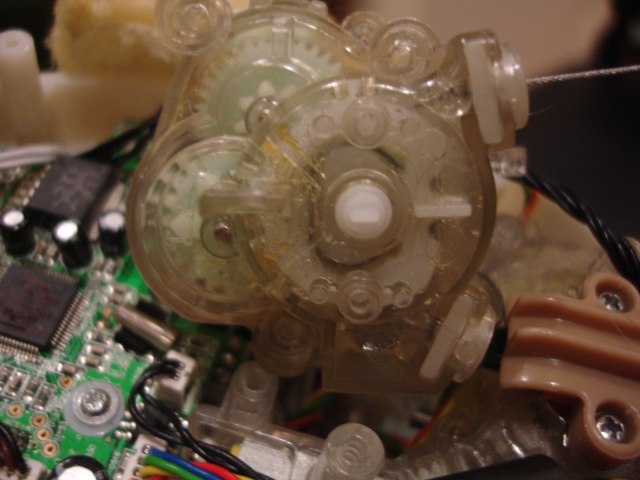

Feb 27, 2012
Side view of threaded cable ge…

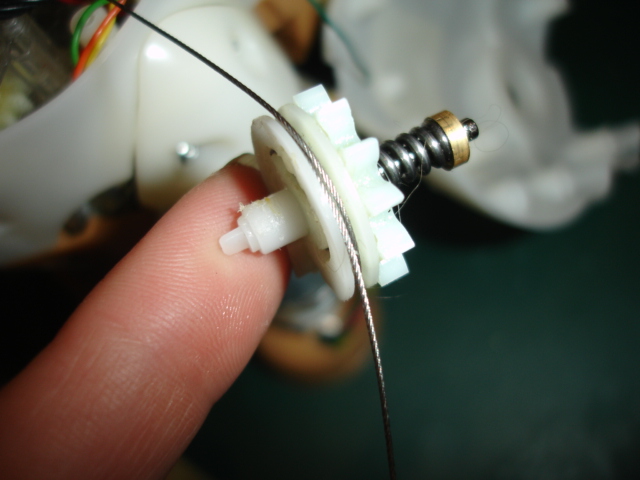

Side view of threaded cable gear.

 Views: 4908
Posted by Crewella
Feb 27, 2012 		Close-up for orientation
Close-up for orientation

 Views: 4961
Posted by Crewella

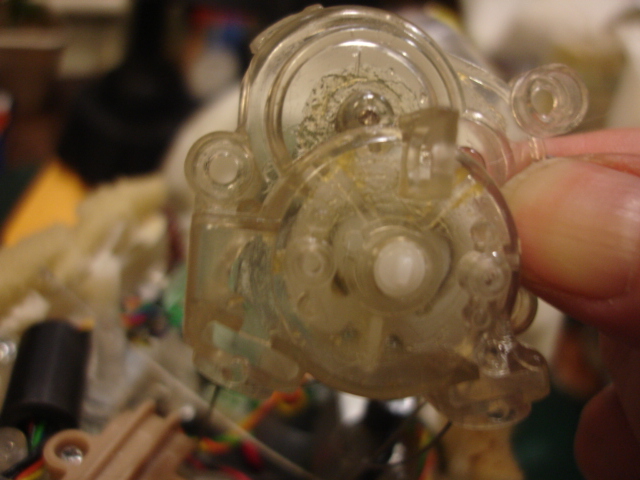

Feb 27, 2012 		The housing cover - one gear s…
The housing cover - one gear stayed with it.

 Views: 4966
Posted by Crewella

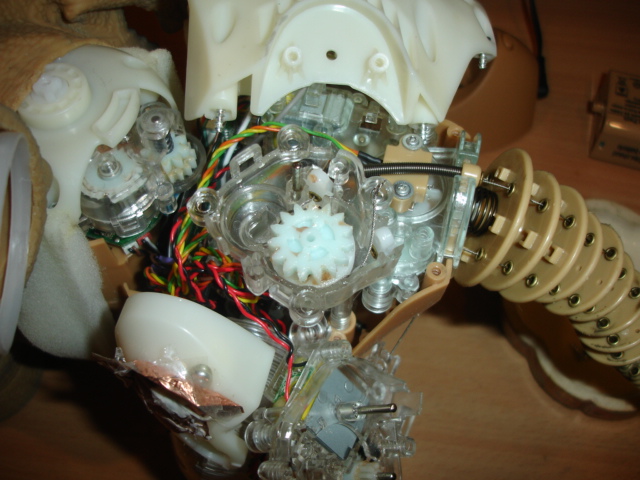

Feb 27, 2012 		With the housing turned back t…
With the housing turned back the right way and the cover removed, you have access to the gears.

 Views: 5022
Posted by Crewella
Feb 27, 2012 		Closer view of underside of si…
Closer view of underside of side cable housing.

 Views: 4881
Posted by Crewella
Feb 27, 2012
Side cable housing should lift…
Side cable housing should lift up and flip over to give you access to the housing screws underneath.

 Views: 5074
Posted by Crewella
Feb 27, 2012 		One more screw to release the…
One more screw to release the side cable housing.

 Views: 4942
Posted by Crewella

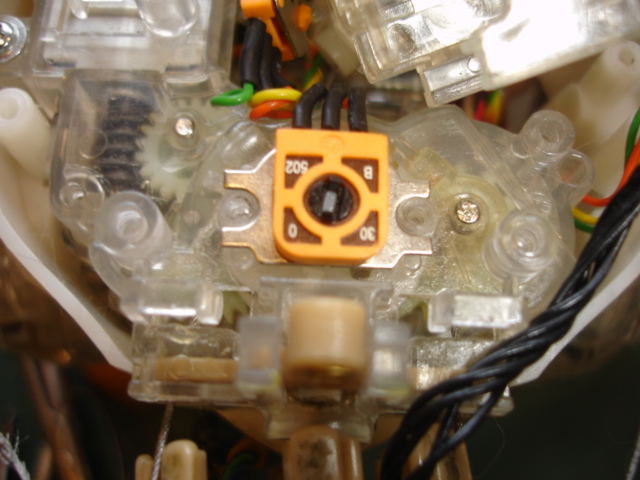

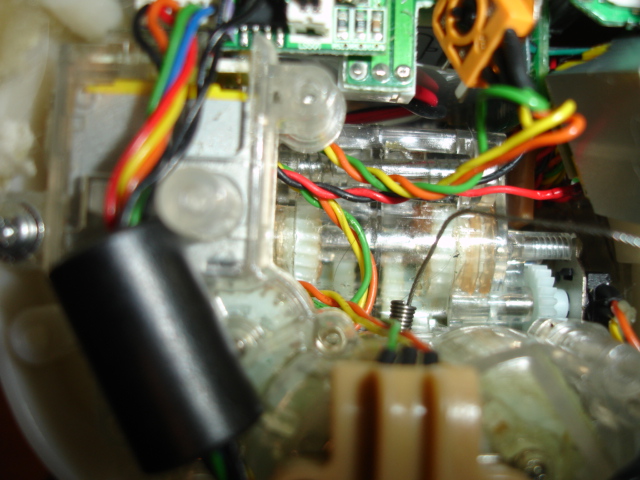

Feb 27, 2012 		You'll need to undo the orange…
You'll need to undo the orange tab (pot/position sensor)

 Views: 5433
Posted by Crewella
Feb 27, 2012 		Pic of the terminals the cable…
Pic of the terminals the cables need to be reattached to.

 Views: 4921
Posted by Crewella
Feb 27, 2012 		The two cables are (thankfully…
The two cables are (thankfully) held together further down

 Views: 4949
Posted by Crewella
Feb 27, 2012
One out .... one to go.
One out .... one to go.

 Views: 4321
Posted by Crewella
Feb 27, 2012 		Once the top cable housing it…
Once the top cable housing it pullled up, you will also need to disconnect these two cables.

 Views: 4574
Posted by Crewella
Feb 27, 2012 		Right front leg comes off in t…
Right front leg comes off in the same way as the left, to access this screw

 Views: 4874
Posted by Crewella
Feb 27, 2012 		Another screw for the housing…
Another screw for the housing under the left front leg

 Views: 5095
Posted by Crewella
Feb 27, 2012 		Behind the left front leg, you…
Behind the left front leg, you can access the screws to release the housing

 Views: 5018
Posted by Crewella
Feb 27, 2012
You need to pull the whole leg…
You need to pull the whole leg away from the body to access the screws to release the side cable housing

 Views: 5150
Posted by Crewella
Feb 27, 2012 		To access the housing for the…
To access the housing for the side cables, you need to remove the upper leg cover.

 Views: 4991
Posted by Crewella
Feb 27, 2012 		With the motor pulled away, th…
With the motor pulled away, the gears will move the full extent of their run.

 Views: 4974
Posted by Crewella

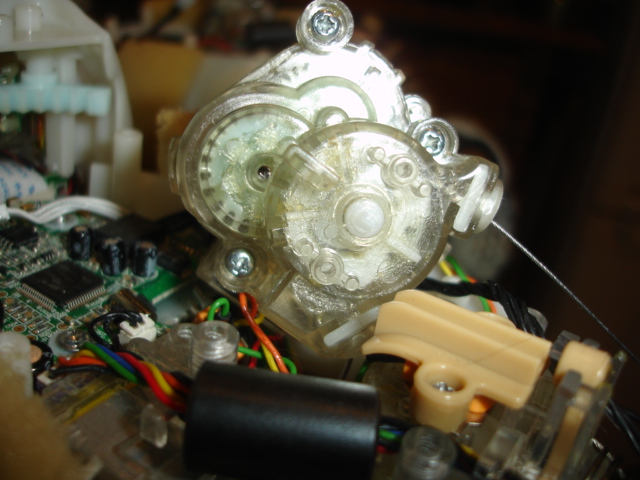

Feb 27, 2012 		The back cover taken off the t…
The back cover taken off the top cable gear housing, you can then pull the motor out.

 Views: 5068
Posted by Crewella
Feb 27, 2012 		How the C-shaped guide fits in…
How the C-shaped guide fits into the housing.

 Views: 4983
Posted by Crewella
Feb 27, 2012
The C-shaped piece that hold t…
The C-shaped piece that hold the wires in position as they cross.

 Views: 4929
Posted by Crewella
Feb 27, 2012 		Step 3: Wrap the cable right b…
Step 3: Wrap the cable right back around and hold in place (its harder than it sounds!)

 Views: 3735
Posted by Crewella
Feb 21, 2012 		It should look like this:
It should look like this:

 Views: 3731
Posted by Crewella

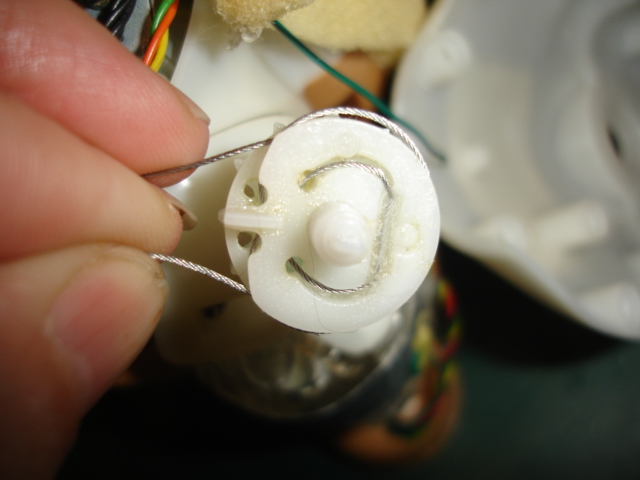

Feb 21, 2012 		Step 2: Wrap the cable towards…
Step 2: Wrap the cable towards the rear of the gear and overlap them.

 Views: 3577
Posted by Crewella

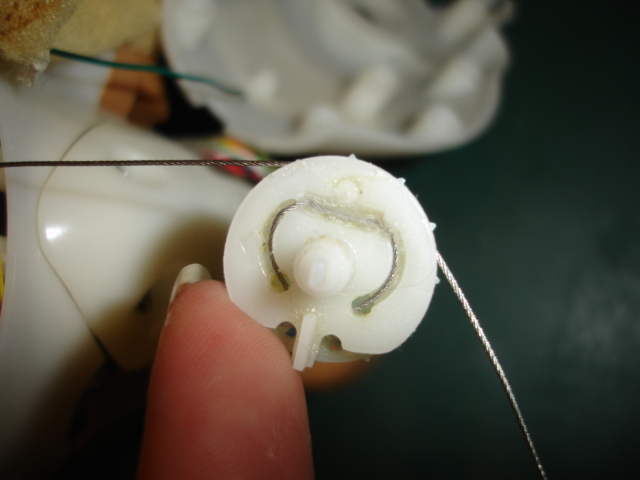

Feb 21, 2012 		Rethreading the cable gear ste…

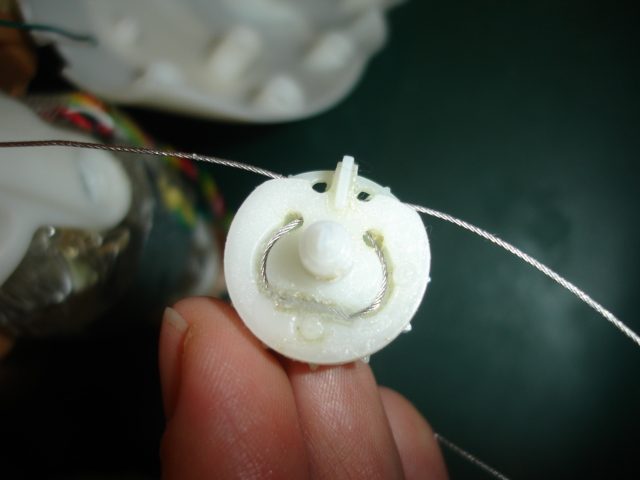

Rethreading the cable gear step 1: Thread the cable through the gear, this part is very fiddly. Make sure you have half the cable coming out each side.

 Views: 3642
Posted by Crewella
Feb 21, 2012
A closer look at the main gear…
A closer look at the main gear:

 Views: 3635
Posted by Crewella

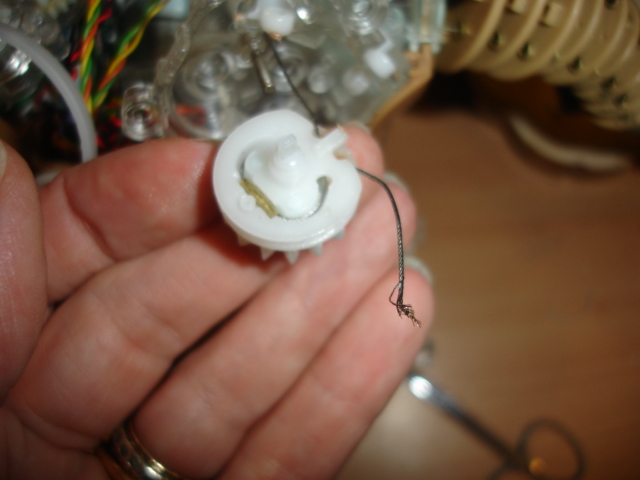

Feb 21, 2012 		This bottom gear is where the…
This bottom gear is where the cable attaches to, please note very carefully the position of the gear as you remove it, or use here for a reference.

 Views: 3631
Posted by Crewella
Feb 21, 2012 		The other side of the gear hou…
The other side of the gear housing.

 Views: 3614
Posted by Crewella
Feb 21, 2012 		Underneath the gear housing, i…
Underneath the gear housing, inside the body cavity, showing where the bottom cable feeds through, note it also has a spring that it must run through.

 Views: 3700
Posted by Crewella
Feb 21, 2012 		The gear housing lifted out of…
The gear housing lifted out of the body cavity, DO NOT PULL IT RIGHT OUT! Leave the wires attached. You will need to undo the three screws during the operation.

 Views: 3796
Posted by Crewella
Feb 21, 2012
Pages: [1] 2 3
